Containment bulkhead clearance

containment bulkhead clearance from splash moulding

containment bulkhead clearance from splash moulding: 2013-08-22

Panasonic Lumix DMC-FT1

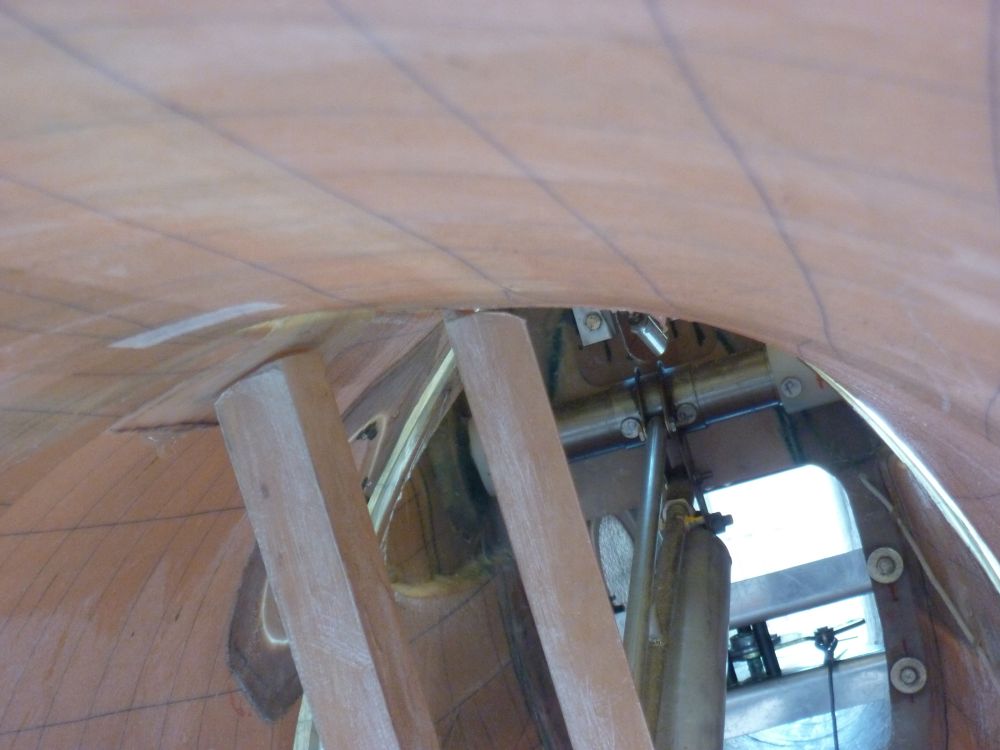

Peering into the back of the fuselage to check the clearance between the top of the containment bulkhead and the splash mould on the fuselage inside skin. You should just be able to see that the bulkhead is clear of the mould by a millimetre or two.
