Bulkhead location on fuselage top moulding

Containment bulkhead top location

Containment bulkhead top location: 2013-07-22

Panasonic Lumix DMC-FT1

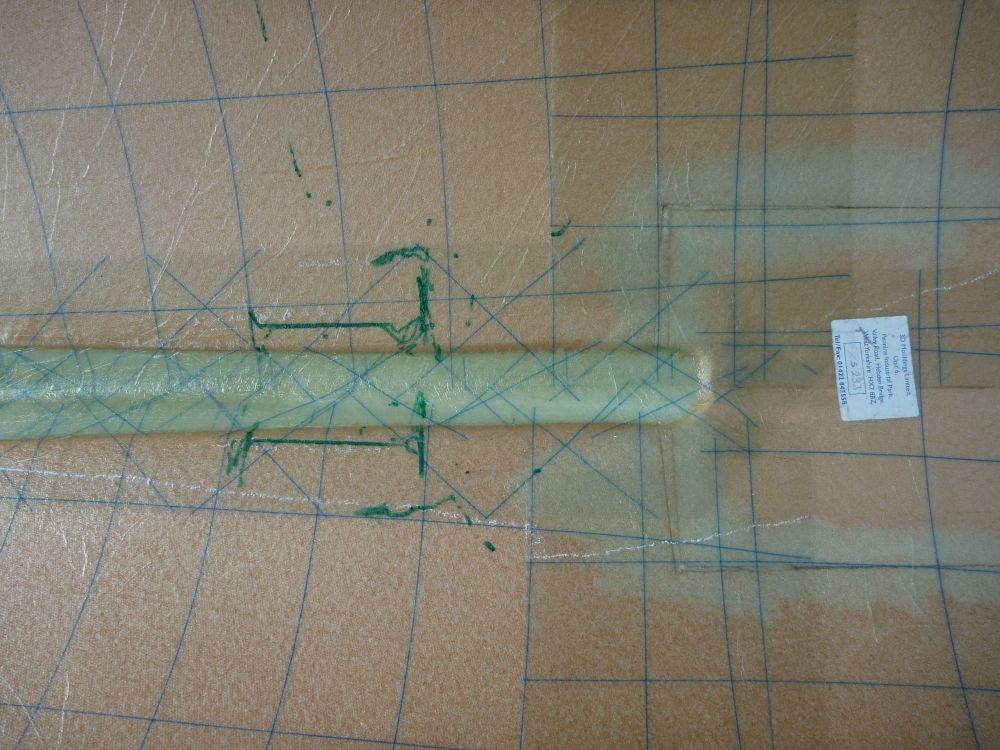

With the fuselage top moulding in place, I used a felt-tip pen attached to the end of an aluminium tube to trace around the top of the containment bulkhead onto the inside skin of the top moulding. This is the result, giving me a good idea where the place the splash moulding for the process of creating the brackets for the top of the bulkhead.
