fuel hose protection on aft baffle
|
|
fuel hose protection on aft baffle |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

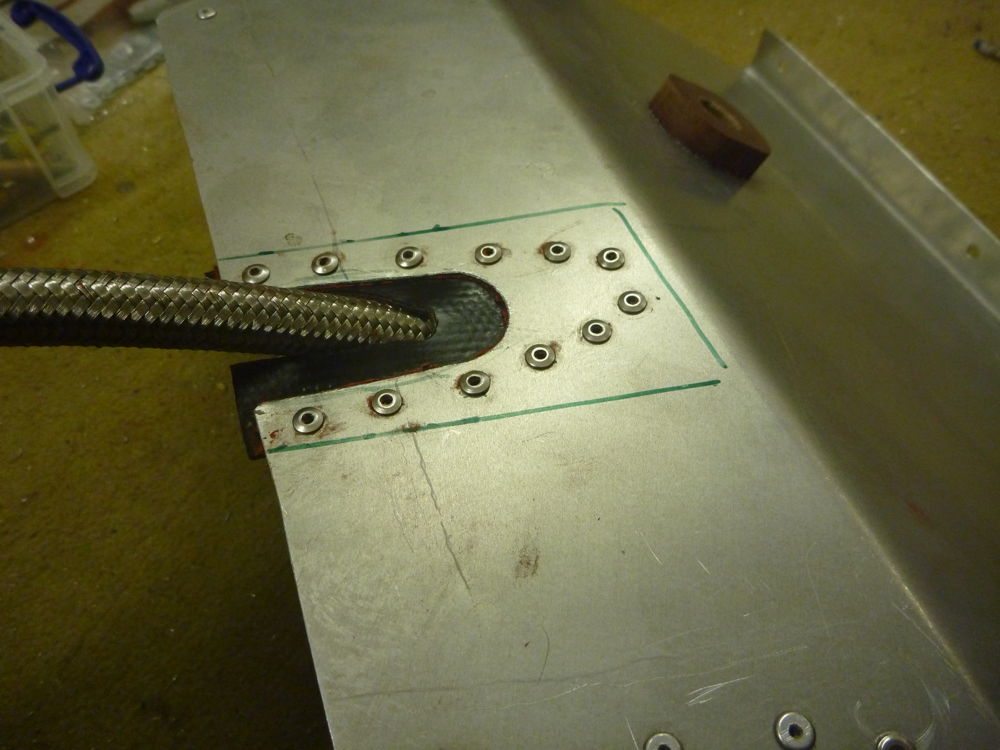

rubber around fuel hose slot - 2nd try: 2018-12-11 Panasonic DMC-FT1
My second attempt to cut a piece of rubber "firewall fabric" to protect the fuel hose where it passes through the slot in the aft baffle was much more successful. Keeping the rivets away from the closed end of the slot in the baffle is to prevent the rivet ends touching the fuel hose.

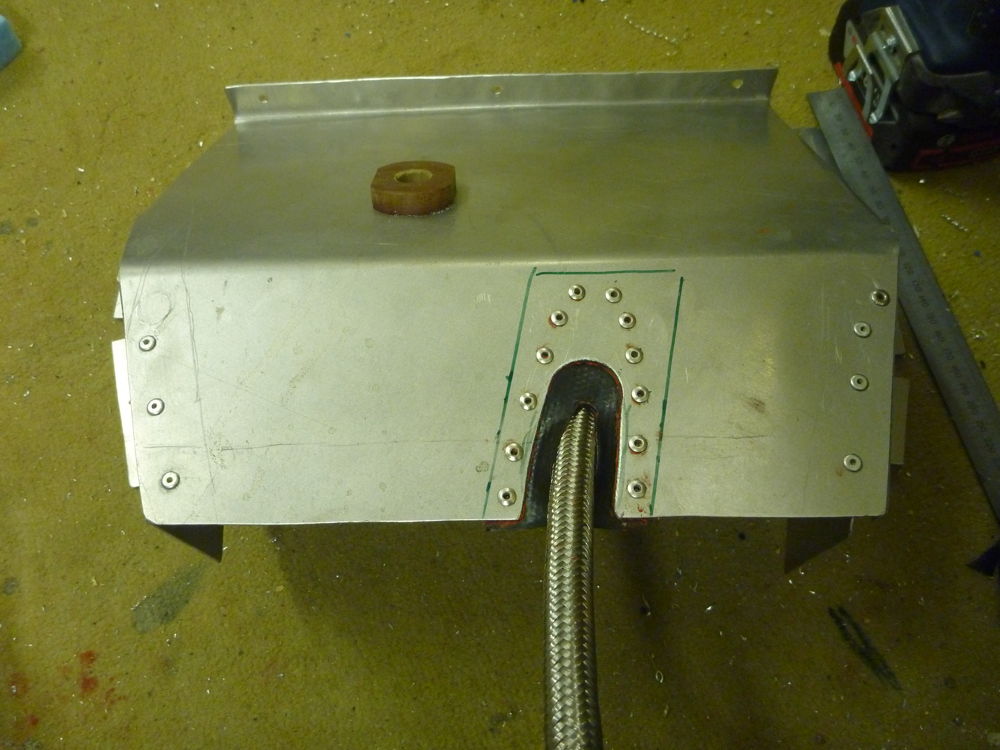

rubber around fuel hose slot - 2nd try: 2018-12-11 Panasonic DMC-FT1
A piece of rubber "firewall fabric" to protect the fuel hose where it passes through the slot in the aft baffle.

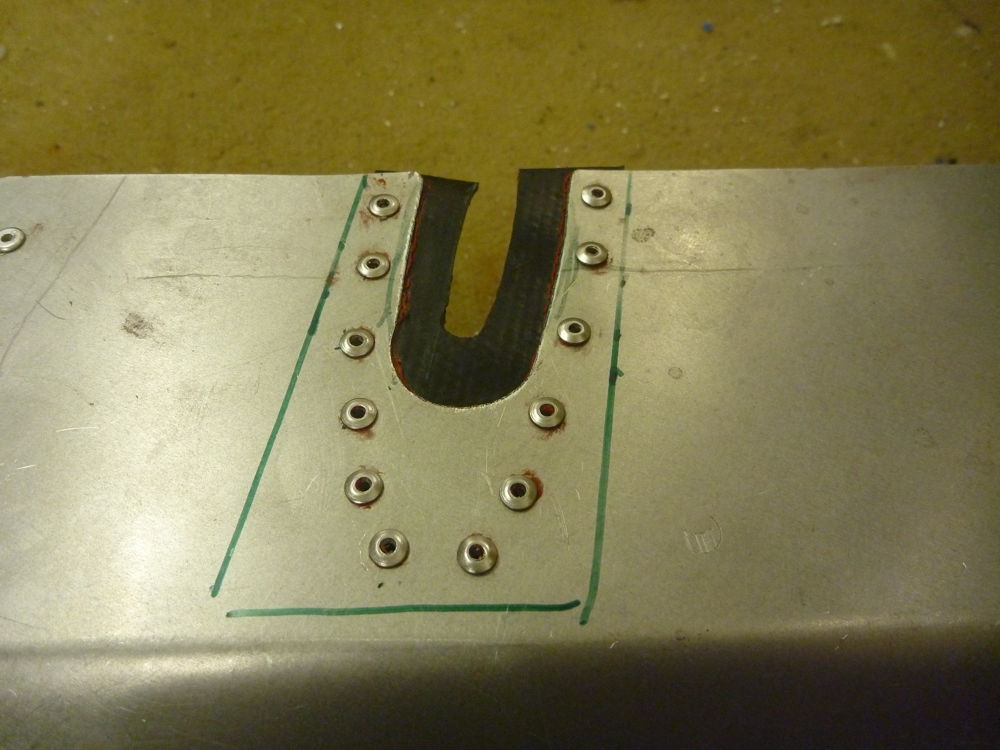

rubber around fuel hose slot - 2nd try: 2018-12-11 Panasonic DMC-FT1
A piece of rubber "firewall fabric" to protect the fuel hose where it passes through the slot in the aft baffle.
