axle bolt lockwire

lockwiring on stub axle

lockwiring on stub axle: 2015-06-04

Lumix DMC-FT1

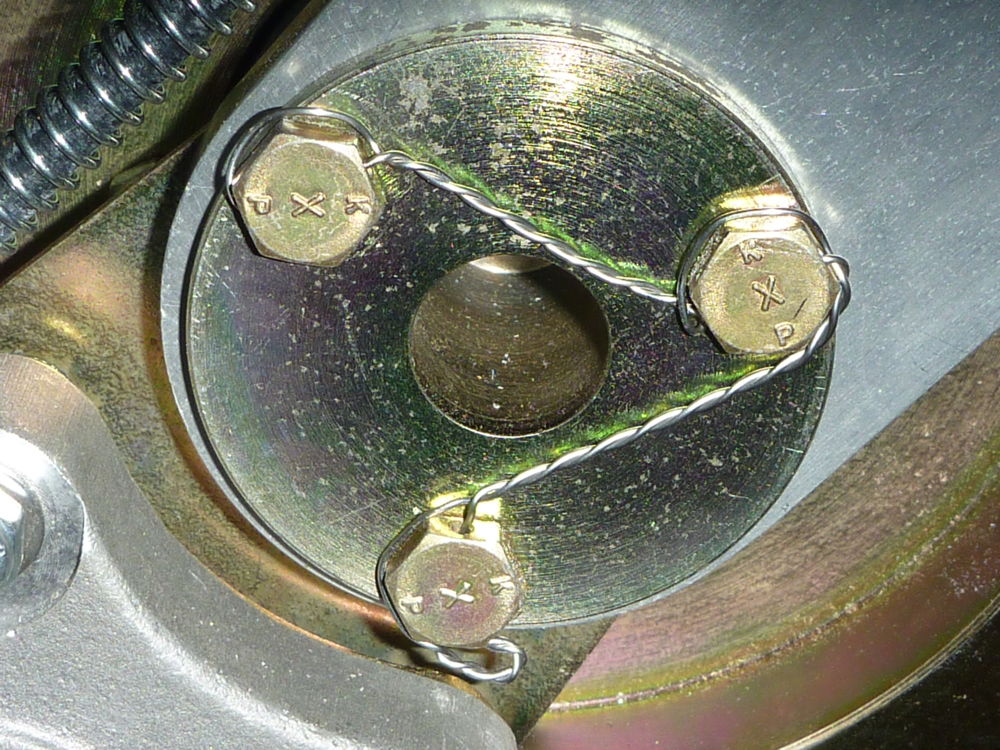

The lockwiring on the bolts securing the stub axle and brake assembly to the landing gear leg. The style chosen follows example 2, clockwise, on page 7-23 of AC43-13 section 7.
