oil cooler baffle fixings

oil cooler baffle fixings: 2020-01-15 Panasonic DMC-FT1

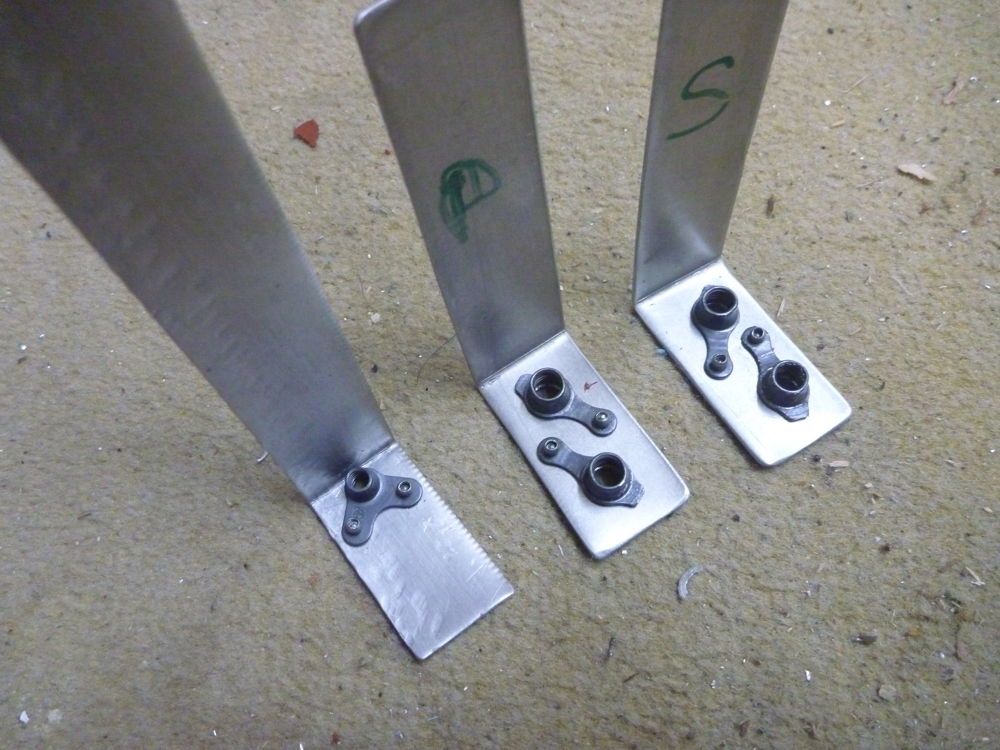

On the right, the two oil cooler side baffles fitted with anchor nuts for fixing to the oil cooler flanges. On the left, one end of the strip intended to seal the gap between the oil cooler and the water radiator. Two different approaches for anchor nuts on these narrow strips - either use an angled anchor nut, or cut off one leg of a straight anchor nut.


baffle for cooler gap, 1st try

baffle for cooler gap, 1st try: 2020-01-15 Panasonic DMC-FT1

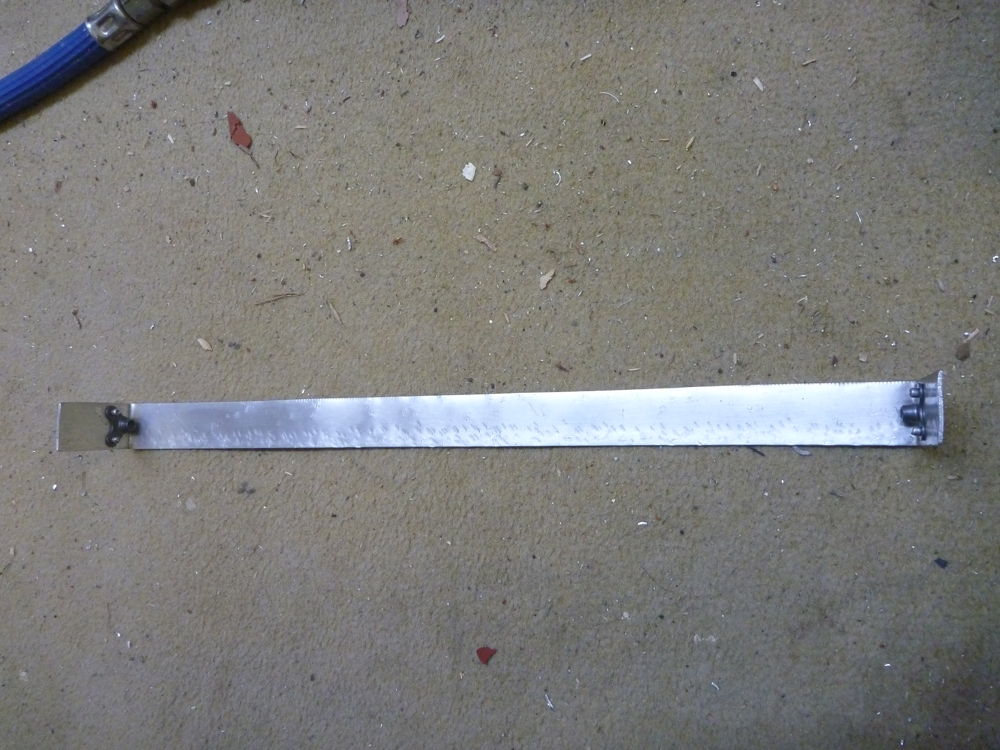

The strip intended to seal the gap between the oil cooler and the water radiator (first attempt).
