instrument panel blanking plate: 2015-06-18
Lumix DMC-FT1

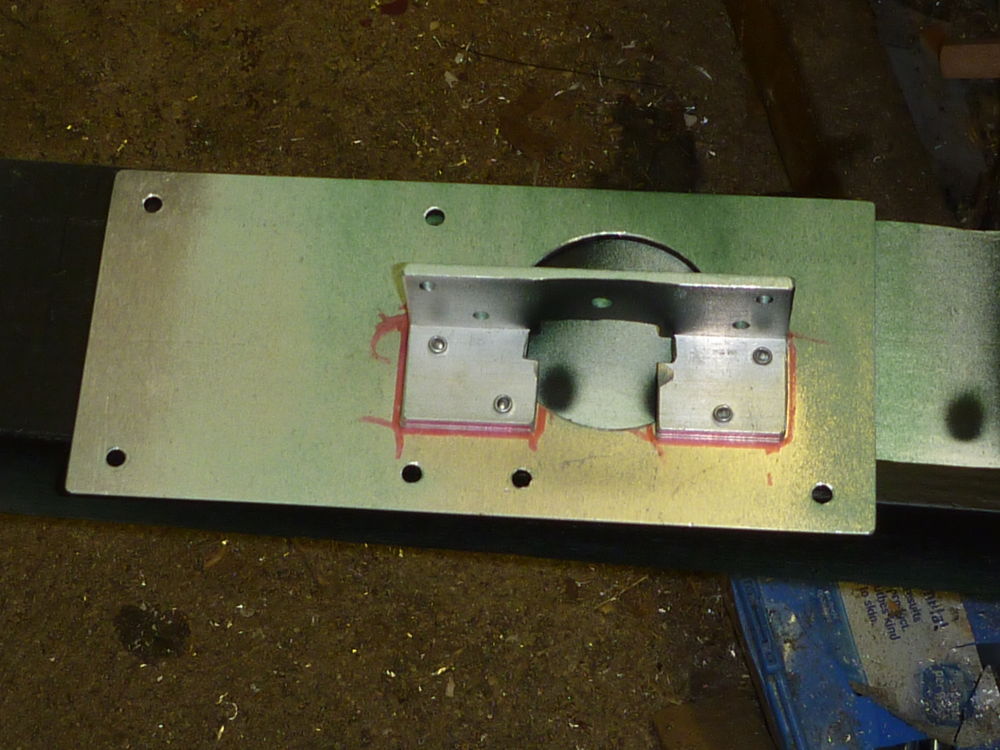

The blanking plate made up to cover the holes formerly occupied by the turn indicator and direction gyro, and to allow mounting of the Airbox Aware 5 in the same area. This is the inner (unseen) face onto which I riveted a piece of aluminium angle to provide an attachment point for the Airbox Aware 5 clip mount.
instrument panel blanking plate: 2015-06-18
Lumix DMC-FT1

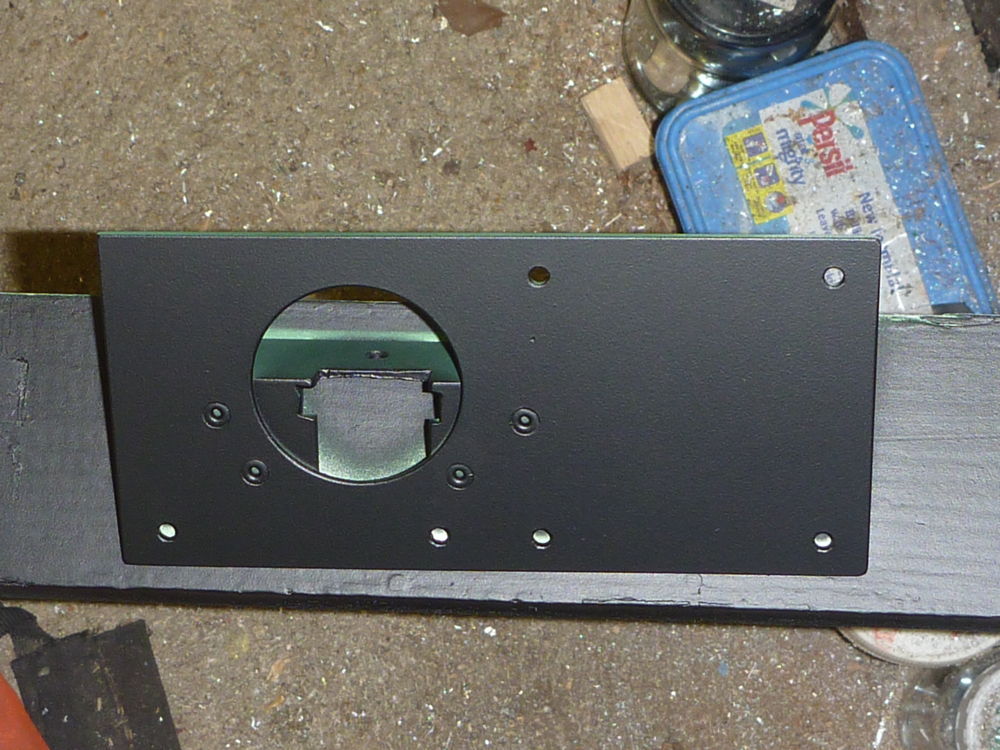

The blanking plate made up to cover the holes formerly occupied by the turn indicator and direction gyro, and to allow mounting of the Airbox Aware 5 in the same area. It's actually upside-down here - the hole will be at the right-hand side when fitted. I've sprayed the face matt black to resemble the black-anodized panel to which it will be fitted.
