aileron balance check after paint removal
|
|
aileron balance check after paint removal |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest
starboard aileron balance check: 2018-08-07 Apple iPhone 6

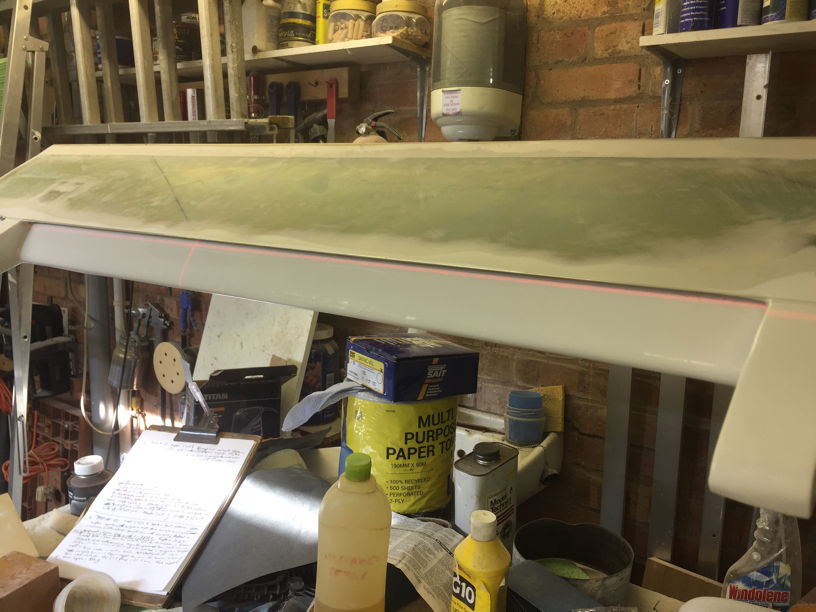

Suspending the starboard aileron for a balance check; setting it horizontal with a laser level line projected along the LE.
starboard aileron balance check: 2018-08-07 Apple iPhone 6

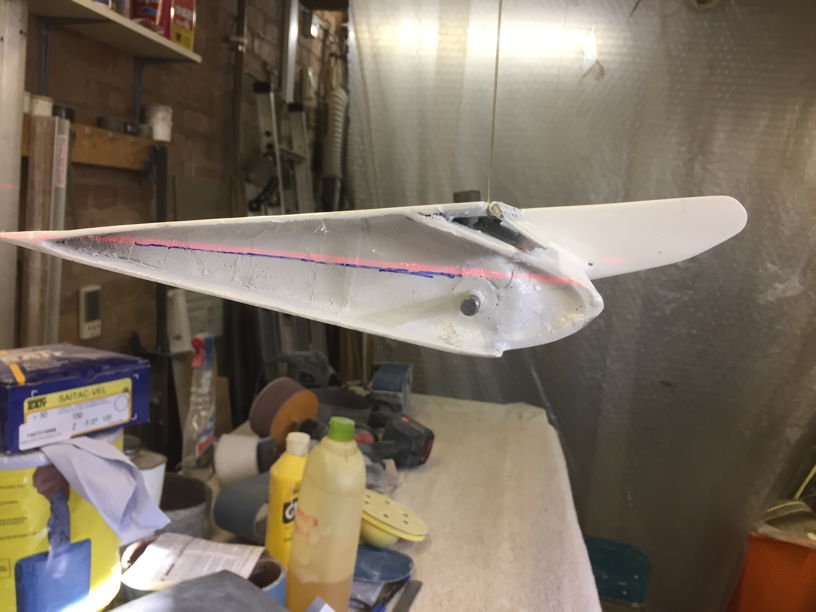

Checking the balance of the starboard aileron. The lead weight was placed mid-way between the hinges and moved fore-and-aft until the mid-line on the aileron root was horizontal according to a projected laser level line (even though the camera was not level!).
starboard aileron balance check: 2018-08-07 Apple iPhone 6

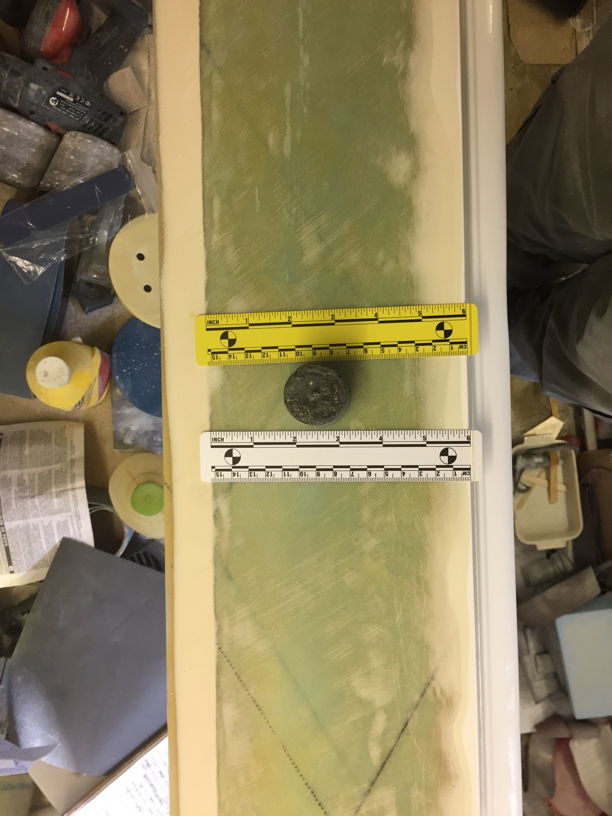

Measuring the distance between the hinge line and the lead weight while the starboard aileron is in balance.
