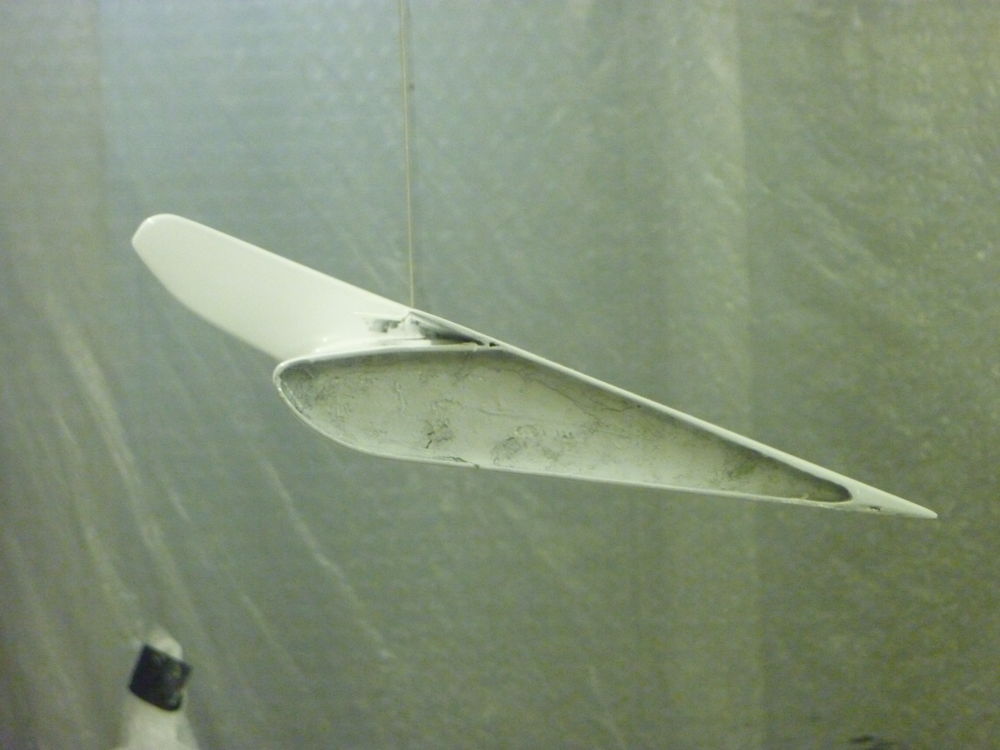

starboard aileron balance after painting: 2017-08-31 Panasonic DMC-FT1
Starboard aileron suspended upside-down from hinge knuckle by fishing line to check balance after painting.

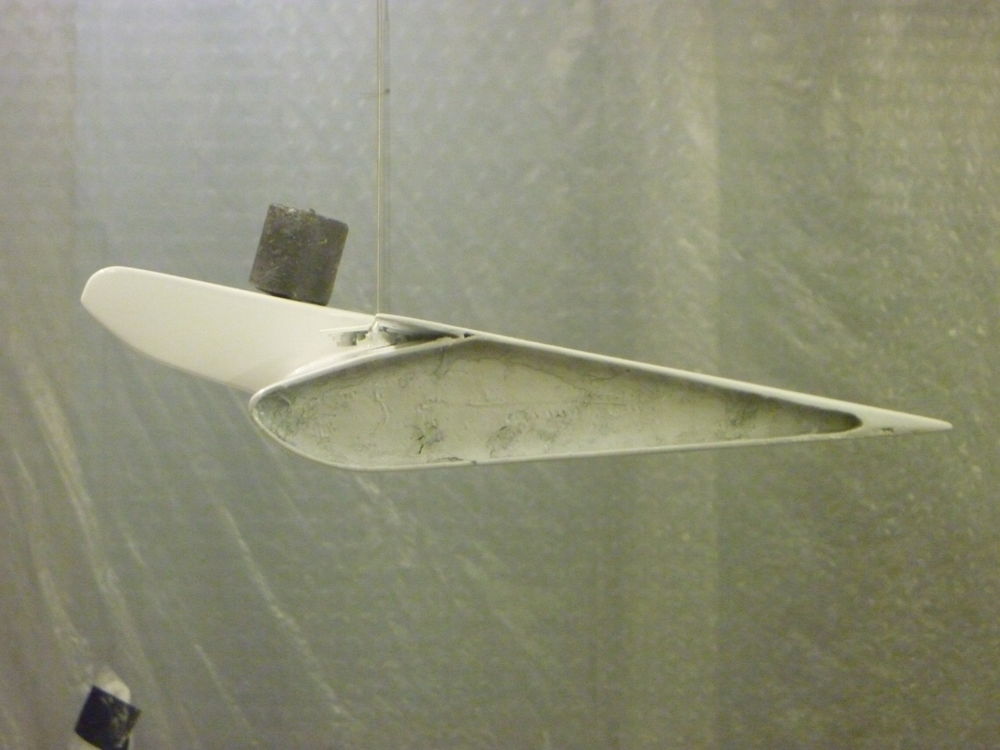

starboard aileron weighted to balance: 2017-08-31 Panasonic DMC-FT1
Starboard aileron suspended upside-down from hinge knuckle by fishing line to check balance after painting, with lead weight on horn to bring it to correct balance, as assessed by eye.

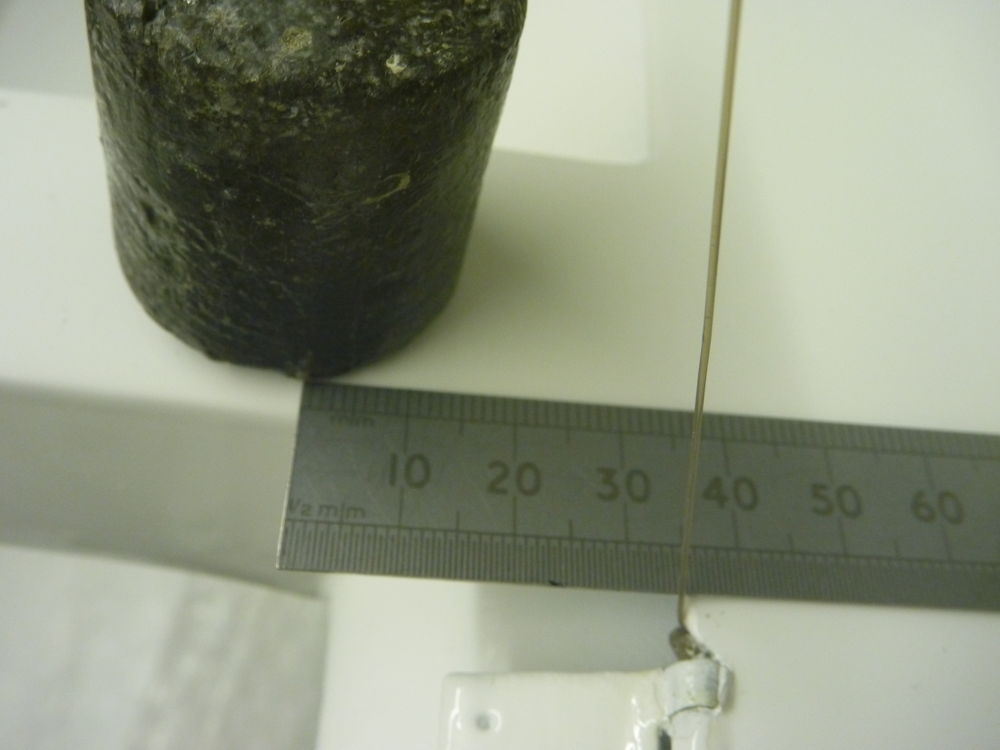

balance weight on starboard aileron: 2017-08-31 Panasonic DMC-FT1
Position of lead weight on starboard aileron horn to bring it into balance. The lead weighs 366gm and is about 35mm forward of the hinge line.

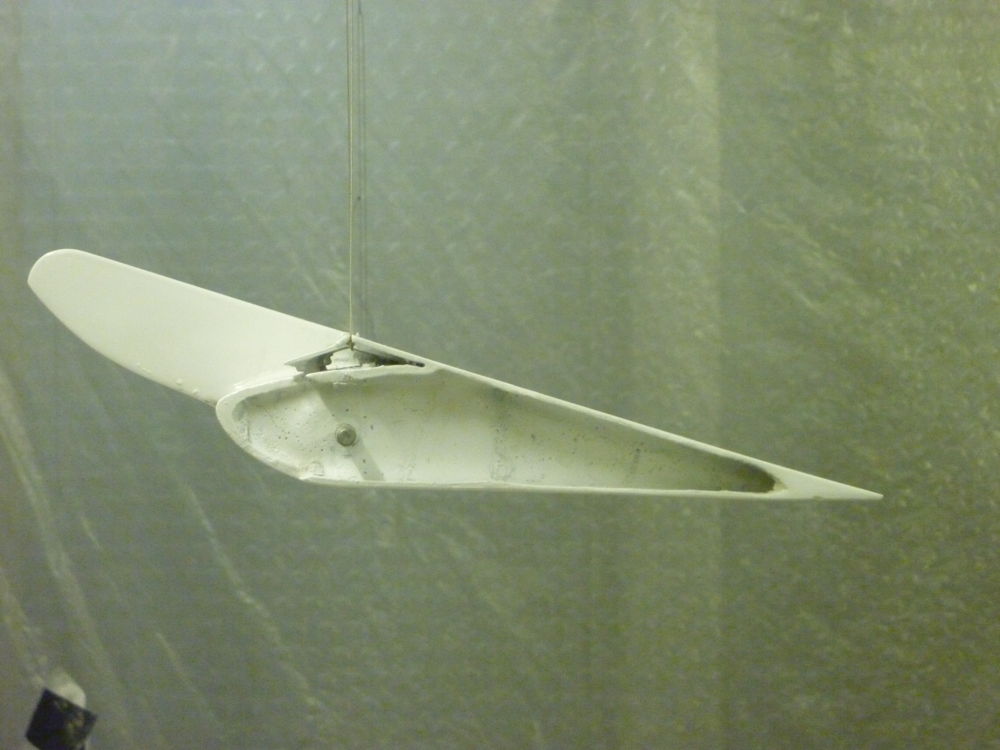

port aileron balance after painting: 2017-08-31 Panasonic DMC-FT1
Port aileron suspended upside-down from hinge knuckle by fishing line to check balance after painting.

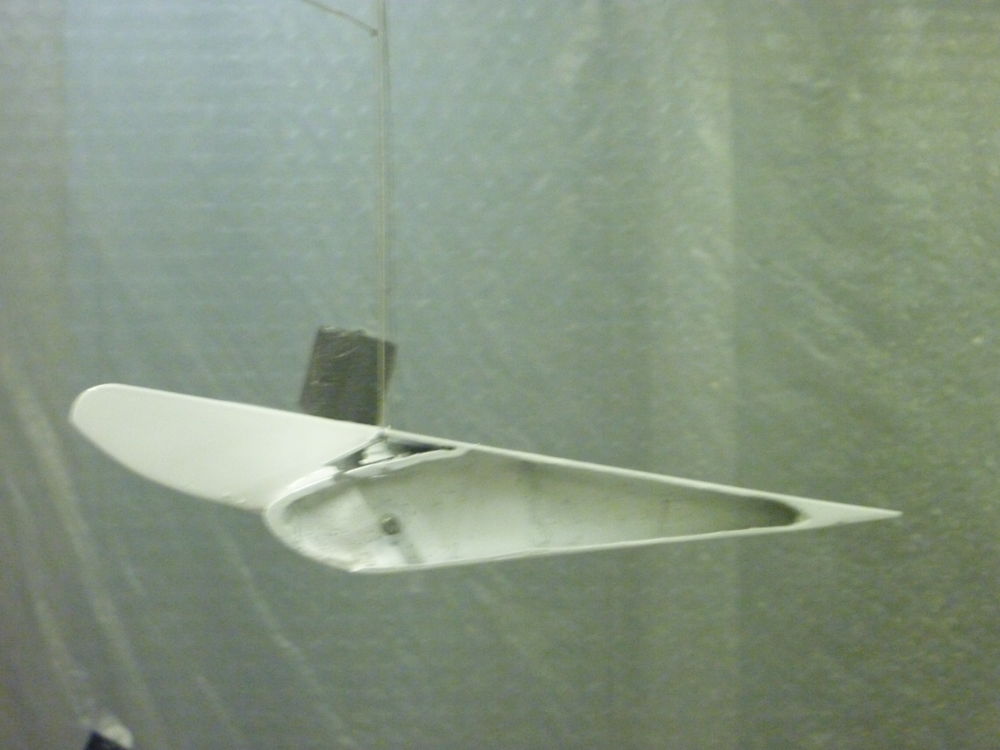

port aileron weighted to balance: 2017-08-31 Panasonic DMC-FT1
Port aileron suspended upside-down from hinge knuckle by fishing line to check balance after painting, with lead weight on horn to bring it to correct balance, as assessed by eye.

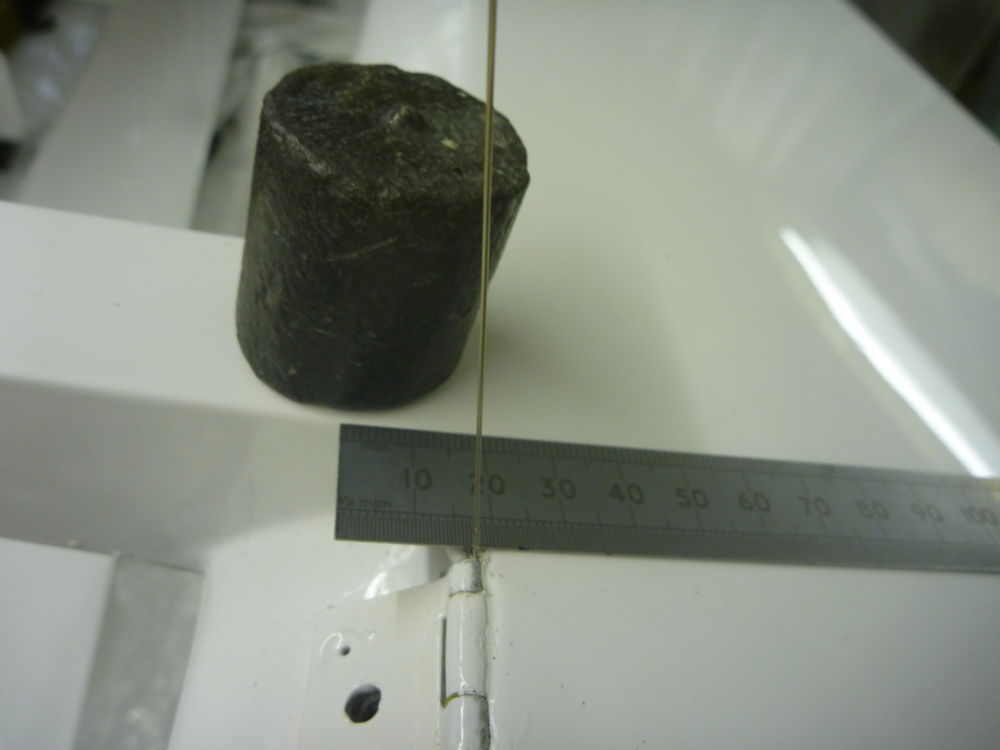

balance weight on port aileron: 2017-08-31 Panasonic DMC-FT1
Position of lead weight on port aileron horn to bring it into balance. The lead weighs 366gm and is about 18mm forward of the hinge line.
