Aft wing socket new hole - port

2 pictures on this page - scroll down to see the rest

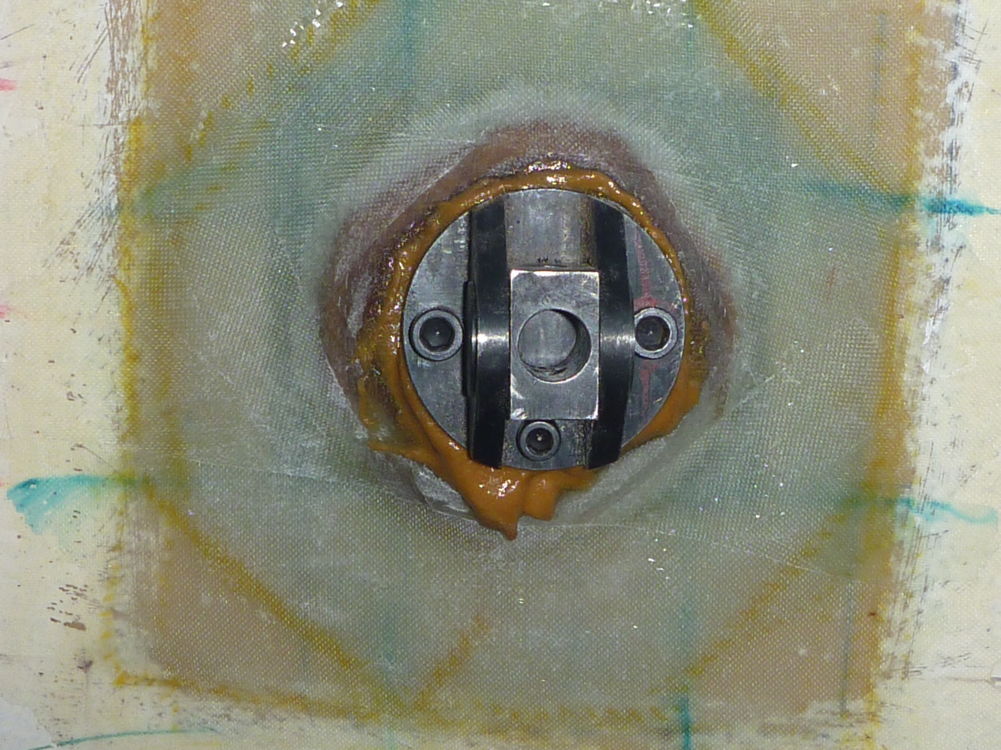

port aft wing socket

port aft wing socket: 2014-12-30

Lumix DMC-FT1

Rather than de-bonding the Redux and going through the whole wing alignment process again, the simple solution to the problem of the upside-down W26 was to drill a new hole at the bottom. Here's the screw fitted in the new bottom hole.

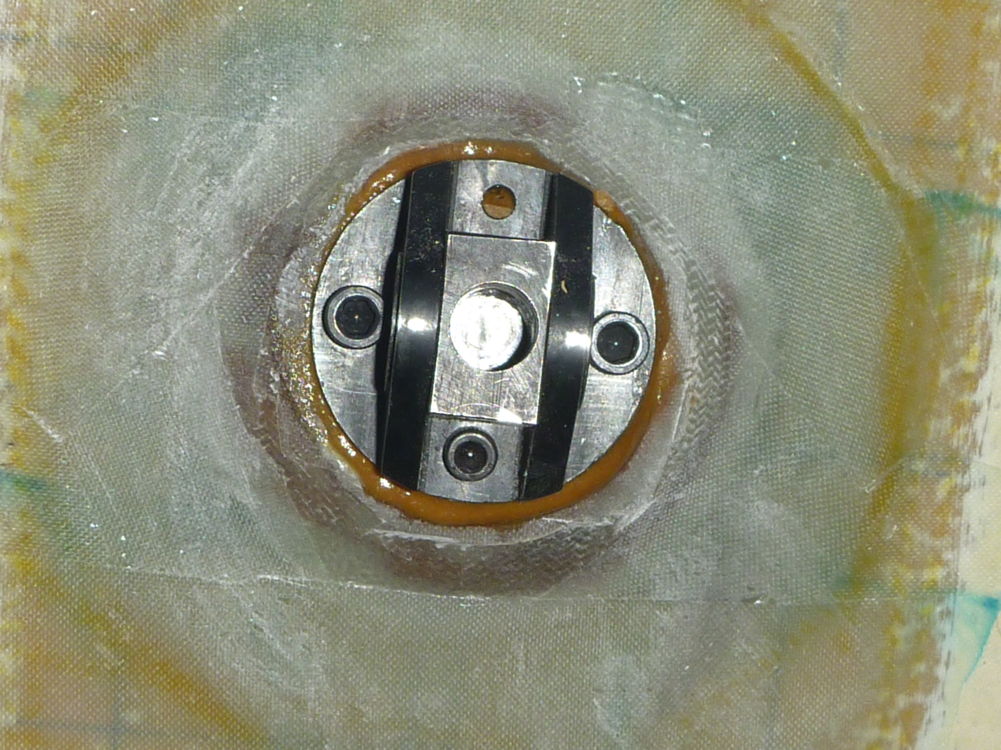

starboard aft wing socket

starboard aft wing socket: 2014-12-30

Lumix DMC-FT1

The starboard aft wing socket, which was bonded to the fuselage in the correct orientation with the 3/16" hole at the bottom.
