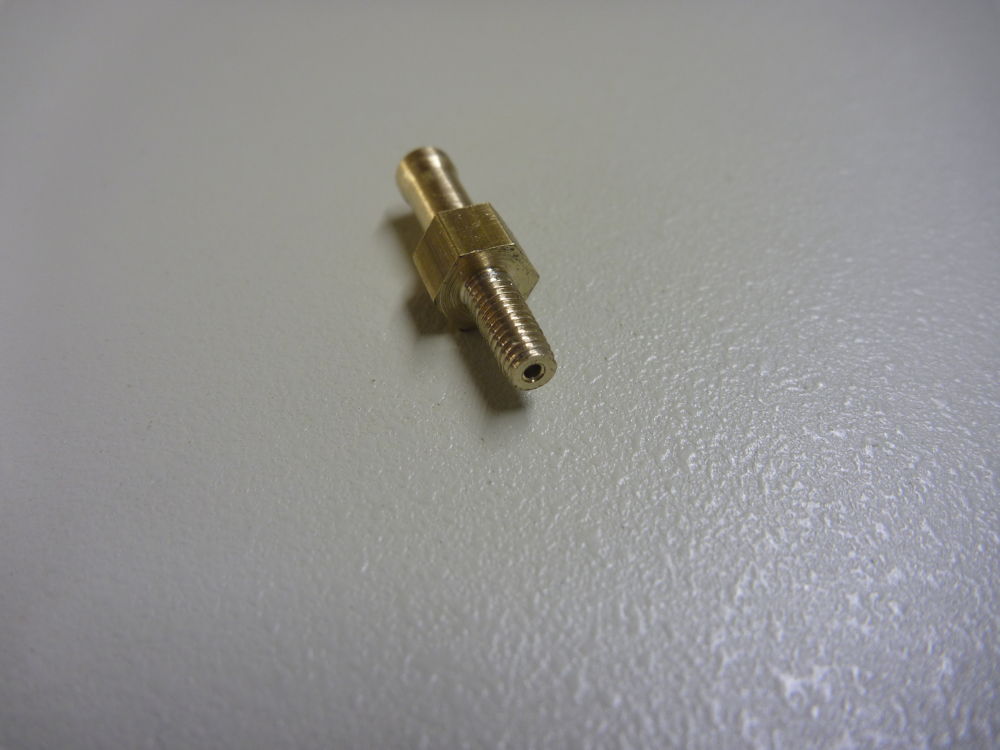

manifold pressure restrictor: 2016-04-29 Panasonic DMC-FT1
The combined restrictor and adaptor I made for the tubing to the the manifold pressure sensor. The near end in this picture is threaded externally M3.5 and drilled 1mm.

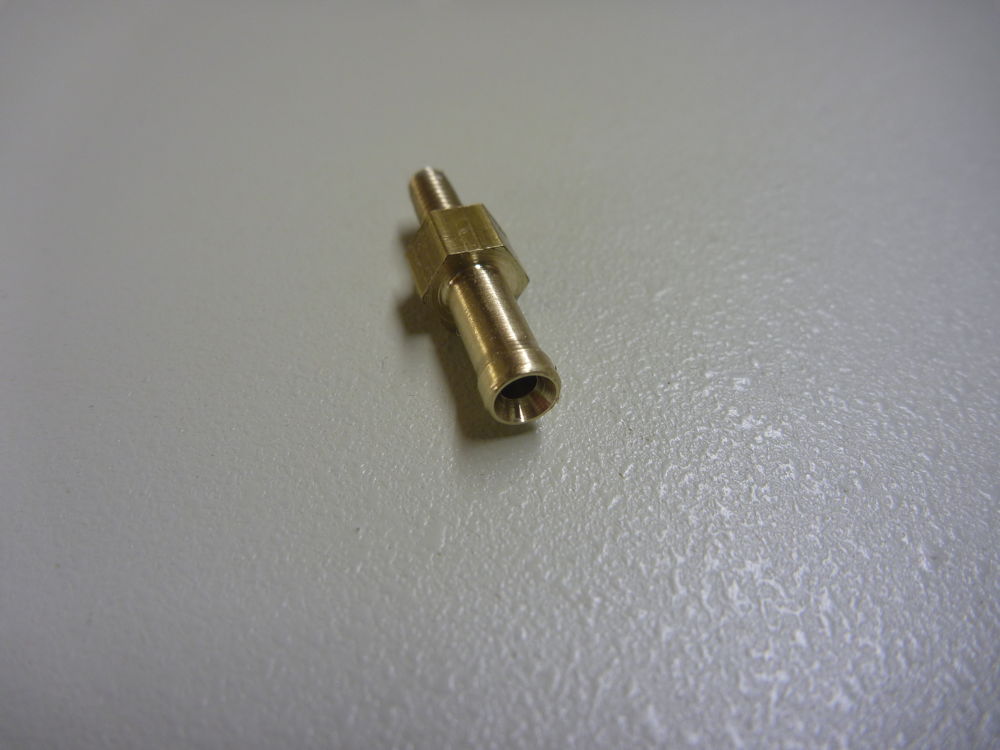

manifold pressure restrictor: 2016-04-29 Panasonic DMC-FT1
The combined restrictor and adaptor I made for the tubing to the the manifold pressure sensor. The near end in this picture is turned down to 4mm with a 4.5mm nipple (to suit 4mm ID flexible tubing) and part-way drilled 2mm.

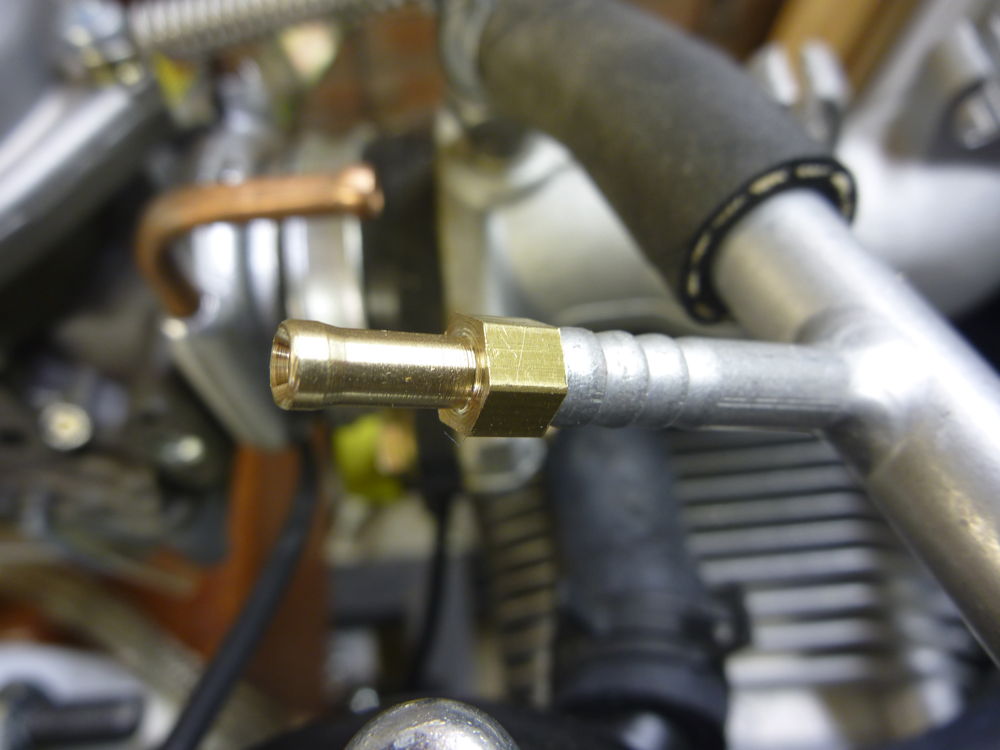

manifold pressure restrictor: 2016-04-29 Panasonic DMC-FT1
The combined restrictor and adaptor I made for the tubing to the the manifold pressure sensor, with the M3.5 threaded end screwed into the tee-piece on the carb balance pipe (previously tapped M3.5).
