fuel return firewall fitting completed
|
|
fuel return firewall fitting completed |
|
|
 |
Navigation & Acknowledgements |
fuel return firewall fitting: 2019-02-12 Panasonic DMC-FT1

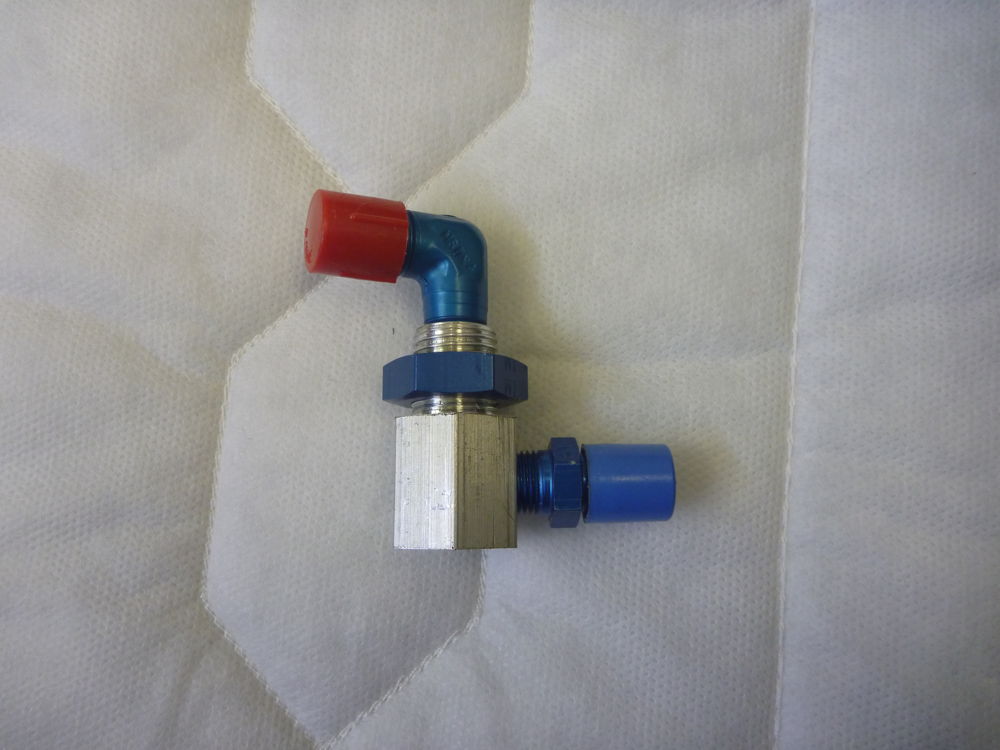

The completed fitting for taking the fuel return line through the firewall. The elbow on the top will connect to the fuel pressure sender via a short length of braided hose. The union on the bottom will connect to aluminium pipe going back through the cockpit to the fuel tank.
