TRX-2000 wiring: 2021-01-16 Panasonic DMC-FT1

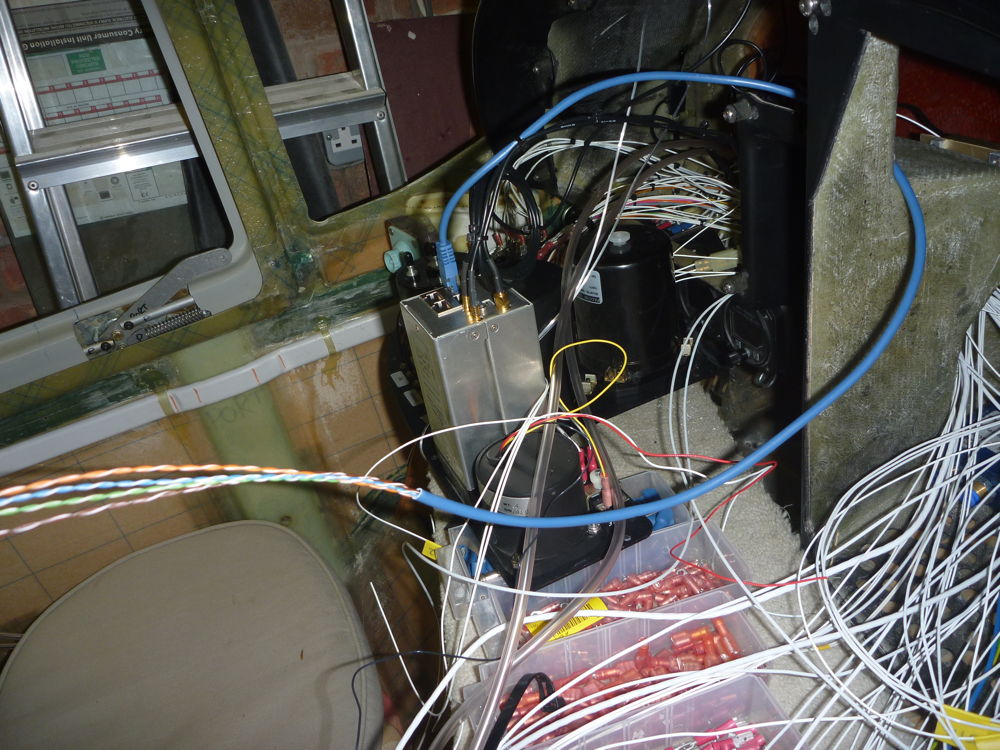

The Garrecht TRX-2000 traffic monitor uses a RJ-45 cable for power and signal connexions. Here I have stripped off the outer jacket of the supplied cable to a suitable length for splitting off to the earth point, and left the inner conductors long enough to reach the fuseblock.
