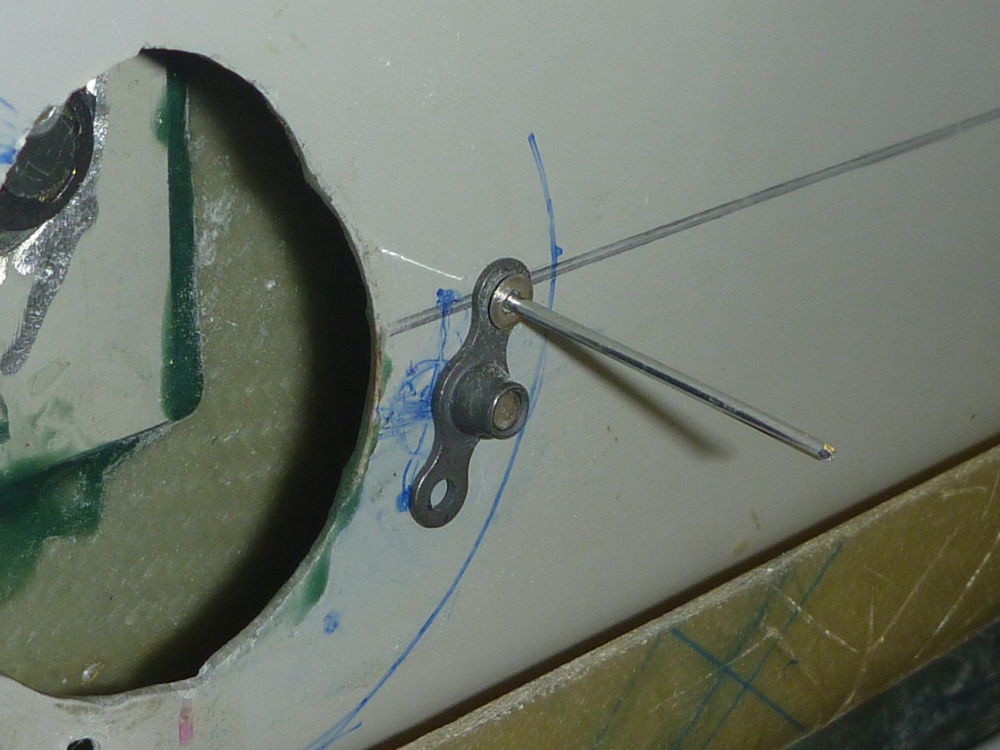

fitting anchor nut for port door lock access hole cover plate: 2022-10-24 Panasonic DMC-FT1
Fitting anchor nuts for port door lock access hole cover plate fixings. Here a M4 screw has been inserted in the fixing hole from inside the door frame, and an anchor nut fitted finger-tight onto it. The first rivet hole has been drilled and a rivet temporarily inserted to maintian alignment while the second hole is drilled.

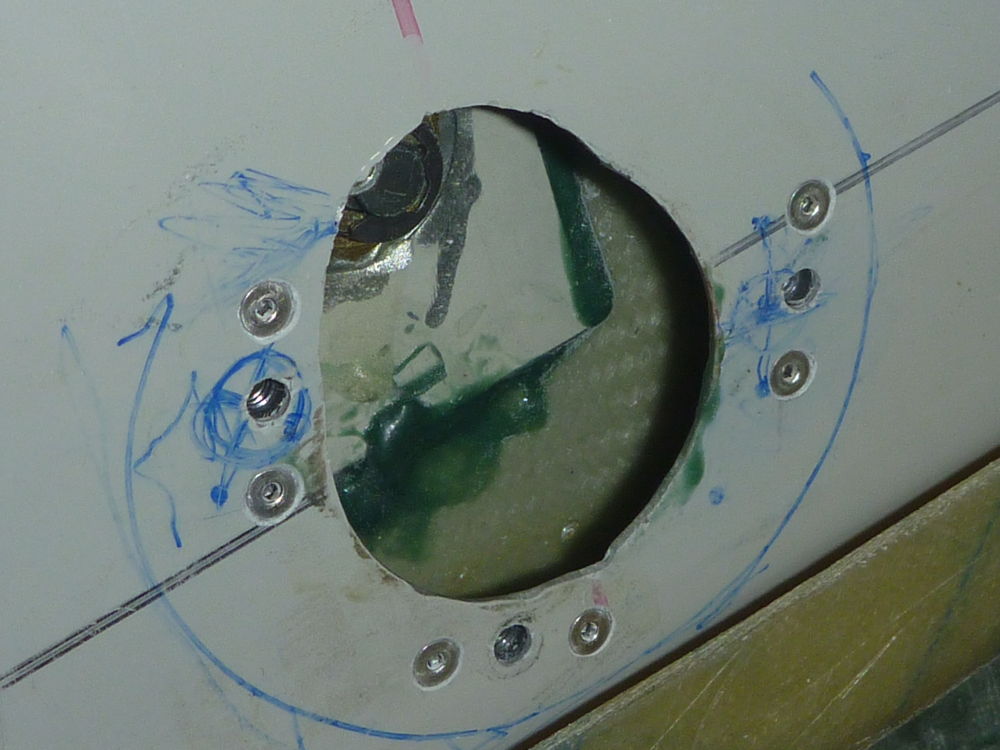

anchor nuts fitted for port door lock access hole cover plate: 2022-10-24 Panasonic DMC-FT1
Anchor nuts fitted for port door lock access hole cover plate fixings.

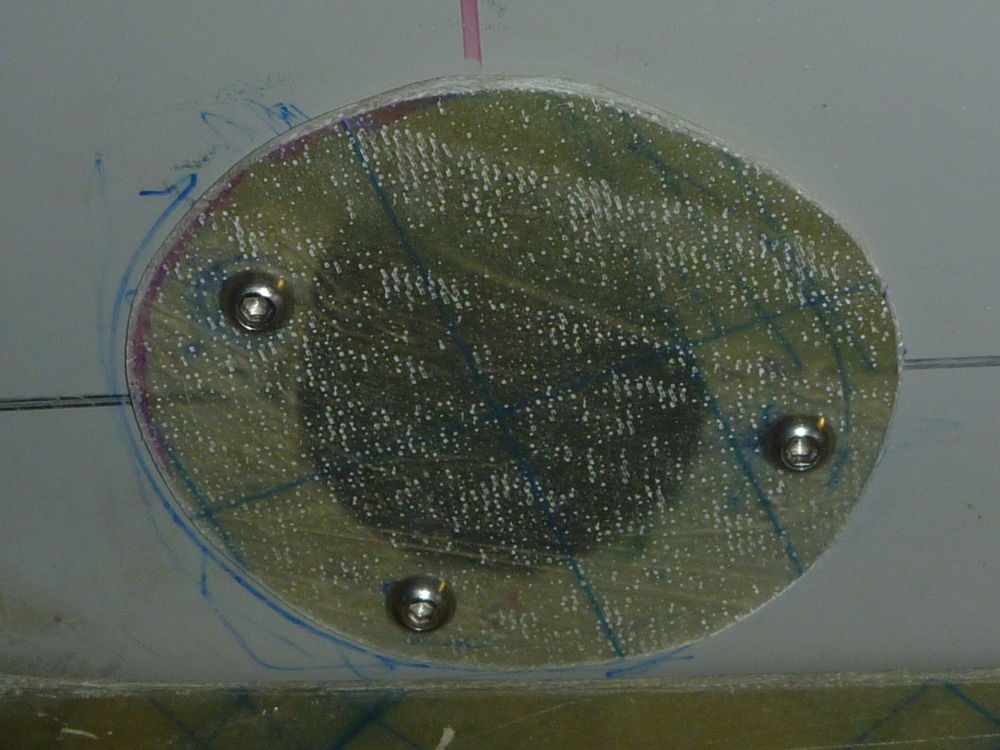

port door lock access hole cover plate fitted: 2022-10-24 Panasonic DMC-FT1
Port door lock access hole cover plate fitted.
