fuel weight sensor vent fitted
|
|
fuel weight sensor vent fitted |
|
|
 |
Navigation & Acknowledgements |
vent tube on fuel weight sensor: 2021-11-30 Panasonic DMC-FT1

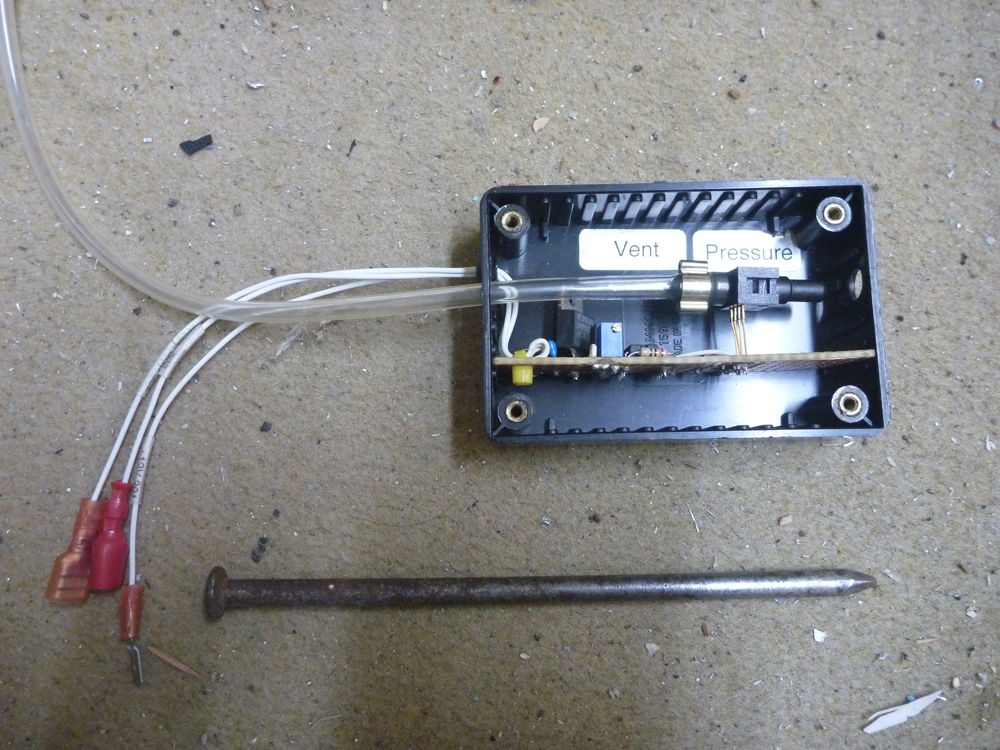

The fuel weight sensor and supporting circuitry in the box, with the urethane vent tubing fitted. Also shown is the 6-inch nail that was used as a hot mandrel to pre-expand the tubing slightly for easier fitting to the sensor. The pressure and vent ports of the sensor have been labelled as a reminder of the correct connexions.
