trail assembly of cooling duct
|
|
trail assembly of cooling duct |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

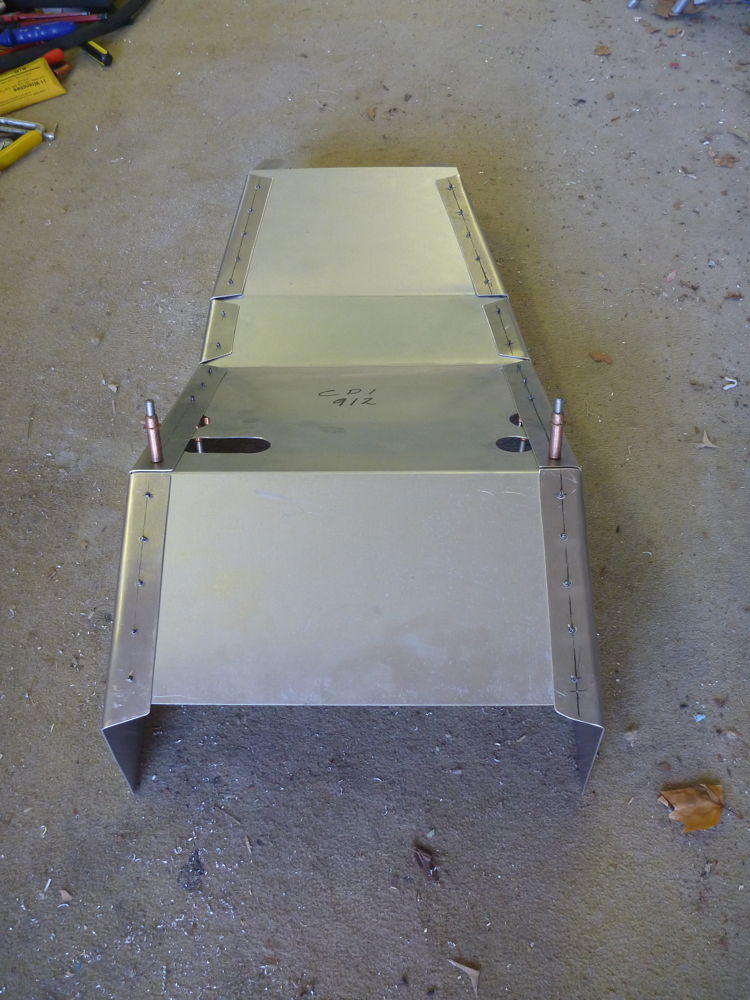

cooling duct trial assembly: 2016-10-12 Panasonic DMC-FT1
Trial assembly of cooling duct side to top with clecos.

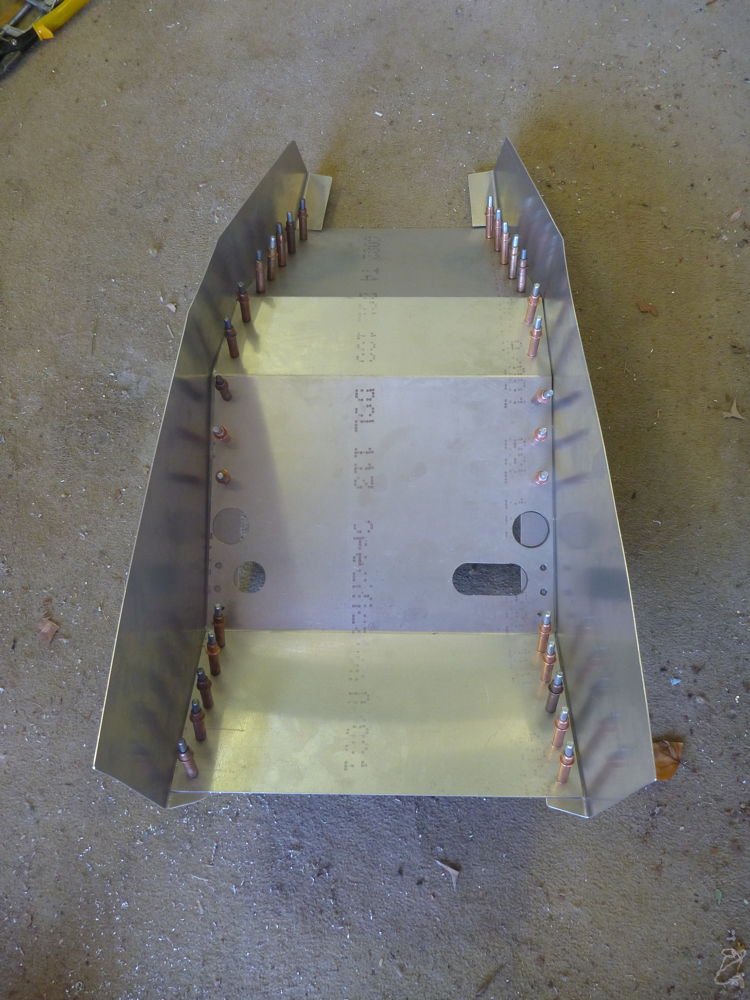

cooling duct trial assembly: 2016-10-12 Panasonic DMC-FT1
Trial assembly of cooling duct side to top with clecos. The 2 clecos on the outside had to be this way round because they would have fouled others if inserted from the inside.
