Fuel sensor amplifier: 2012-09-12
Lumix DMC-FT1

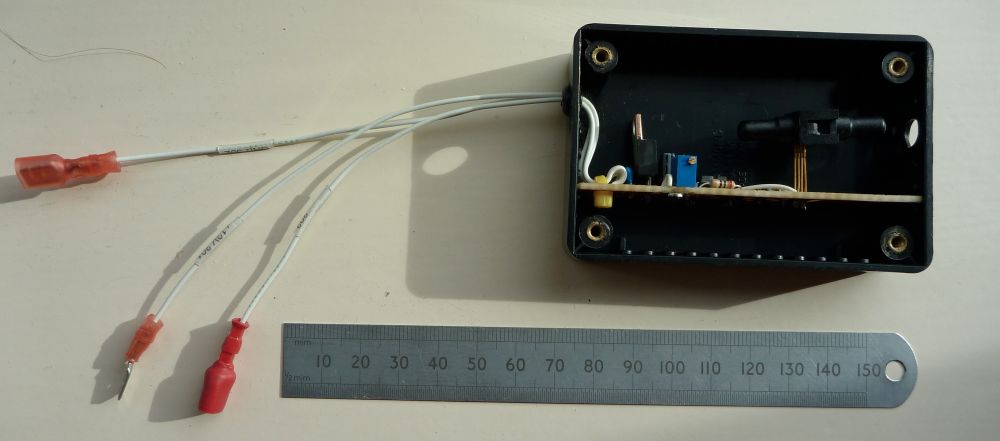

The conditioning amplifier for the fuel level sensor.
Fuel sensor amplifier: 2012-09-12
Lumix DMC-FT1

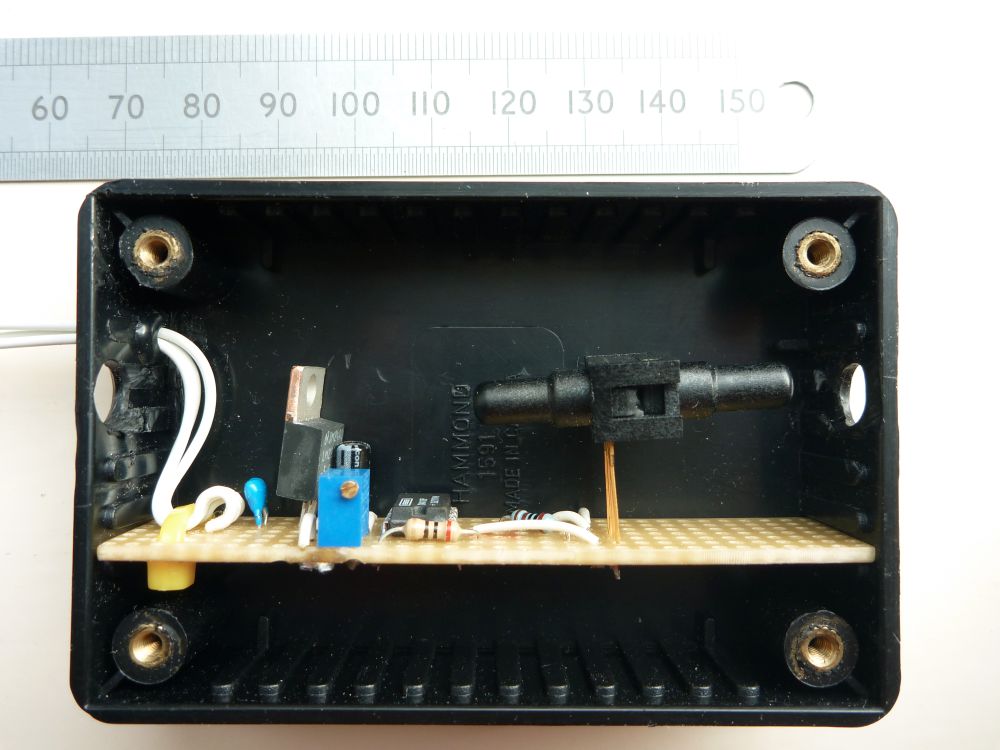

The conditioning amplifier for the fuel level sensor.
Fuel sensor amplifier connexions: 2012-09-12
Lumix DMC-FT1

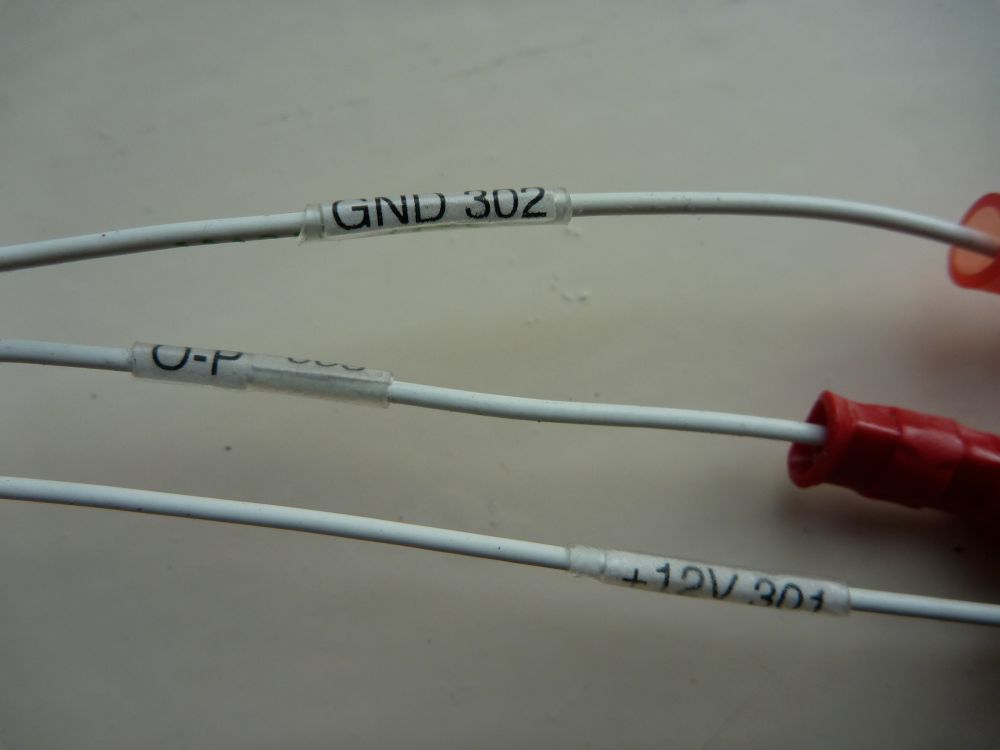

Labelling of the connexions for for the fuel level sensor conditioning amplifier. I printed small labels and attached them to the wires with clear heat-shrink sleeving.
